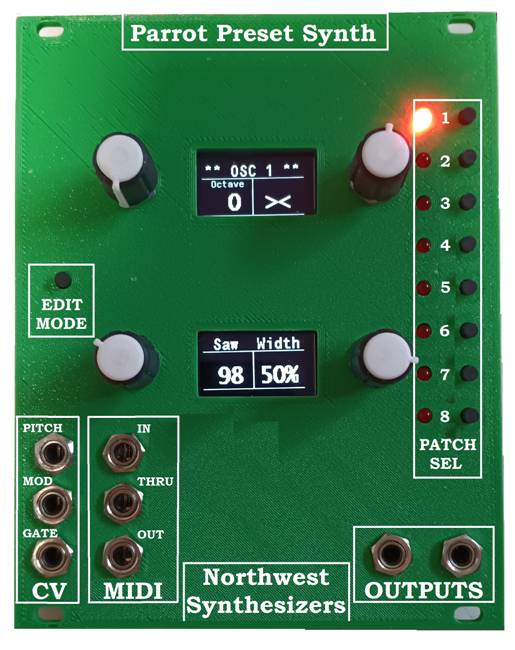

Introducing Parrot







Parrot Preset Synthesizer



A Complete Synthesizer Voice in a 20HP Eurorack Module



3 Oscillators, Low-Pass Filter, Digitally Controlled Amplifier,

2 ADSR Envelope Generators



Voltage Control and MIDI Inputs – MIDI with Thru and Out



8 Presets



Editing via 4 Continuous Encoders with OLED Displays



Patches can be loaded and saved via MIDI.



Function Descriptions



Osc 1

        Octave Select

        Ramp/Pulse Select

        Output Volume

        Pulse Width – 5% to 95%



Osc 2 and 3

        Octave / Semitone Select

        Detune + / - Half Semitone

        Ramp/Pulse Select

        Output Volume

        Pulse Width – 5% to 95%



Low Pass Filter

        Cutoff Frequency Offset Adjust

        2-Pole / 4-Pole Select

        Resonance

        Env 1 Amount

        Pitch Input Tracking Amount / Low or High Note Tracking



Envelope Generators

        Attack Time Adjust (1)

        Decay Time Adjust (1)

        Sustain Level Adjust

        Release Time Adjust (1)

                (1) Times adjustable from 0.005 sec to 5.00 sec



MIDI Keyboard Controls

        Note Priority Select

                Monophonic – Low Note

                Monophonic – High Note

                Paraphonic – 3 Note Maximum



        Bend Amount - +/- 1 to +/- 12 Semitones



        Modulation Waveform

                Positive Ramp

                Negative Ramp

                Sine

                Square

        Modulation Amount - +/- 1 to +/- 12 Semitones



        Glide Type – Linear or Exponential

        Glide Time Adjust – Very Fast to Very Slow (Relative)



        White Noise Source – Level Adjust







For more information, pricing and release date, email:



      info@nwsynth.com
